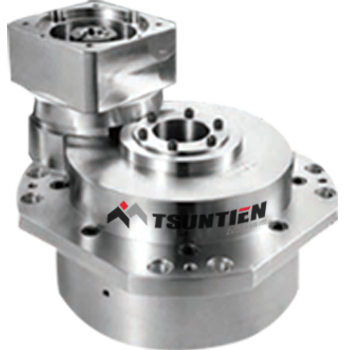

![TTRD-C SERIES](http://www.tsuntien.com/userfiles/1/files/productSeries/english/TTRD-C SERIES/images/productIntroduce/TTRD-C SERIES.png)
Features
Hollow body design and connect to the servo motor directly which shows the more convenient for the applications.
Parameters summary
Type:TTRD-10C~TTRD-500C
Backlash:≤1-5 Arc.min
Ratio:1/64.38~1/219
Capacity:0.2KW~15KW
Rotation:Shaft Run or Case Run
Rated output torque:98NM~4900NW

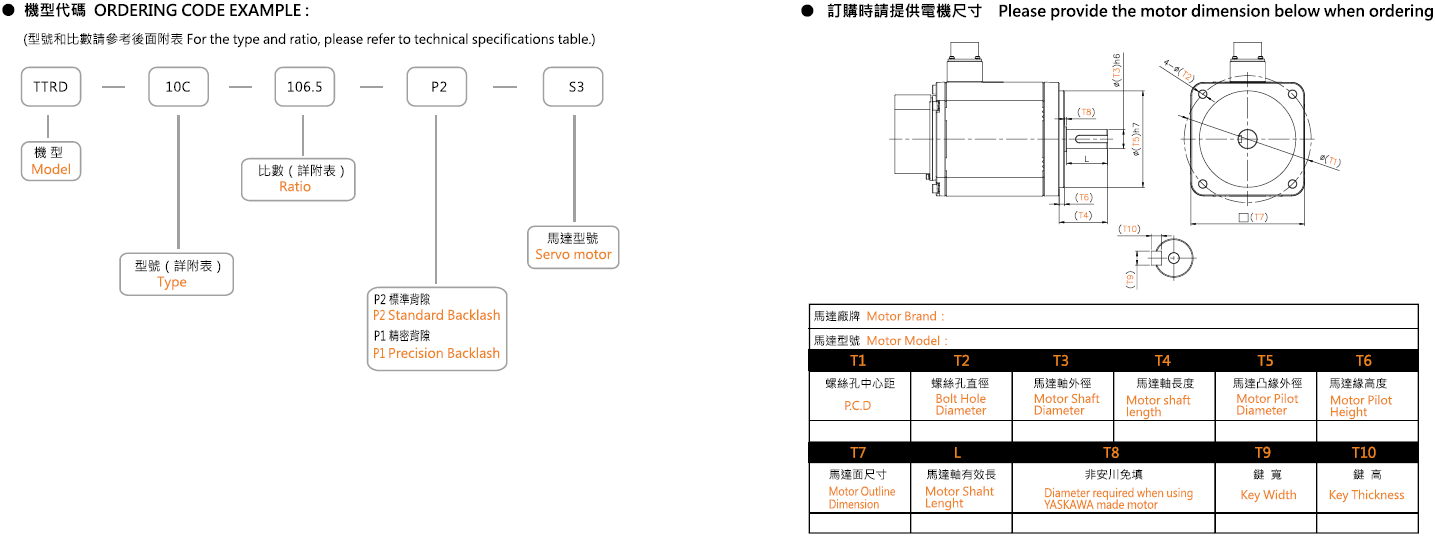

Ordering Instructions
订购说明
![订购说明](http://www.tsuntien.com/userfiles/1/files/productSeries/english/TTRD-C SERIES/images/productParameter/pro-pt-1.png)
Drawing&Dimension
TTRD-C SERIES尺寸图
![TTRD-C SERIES尺寸图](http://www.tsuntien.com/userfiles/1/files/productSeries/english/TTRD-C SERIES/images/productParameter/pro-pt-5.png)
TTRD-C SERIESTechnical Specification
TTRD-C SERIES性能表
![TTRD-C SERIES性能表](http://www.tsuntien.com/userfiles/1/files/productSeries/english/TTRD-C SERIES/images/productParameter/pro-pt-4.png)
TTRD-C Case run – base of the robotic arm
