Features
Hollow body design for the cable get through and avoid the interference while operating the machine.
Parameters summary

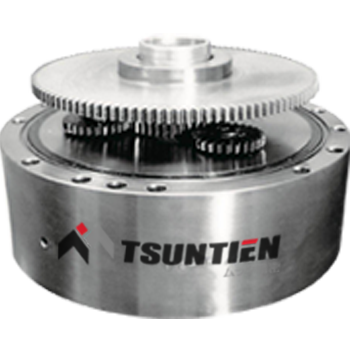

Type：TTRV-10C~TTRV-500C
Backlash：≤1-5 Arc.min
Ratio：1/26.625~1/38.58821
Rotation：Shaft Run or Case Run
Rated output torque：98NM~4900NW
Applicable equipment type
Robotic arm

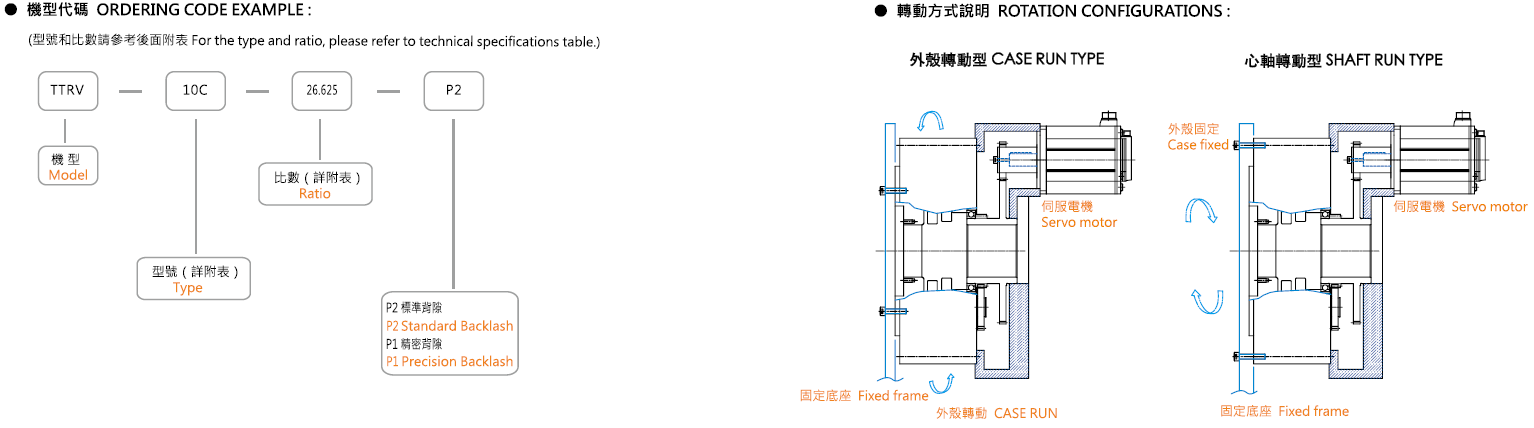

Ordering Instructions
订购说明
Drawing&Dimension
TTRV-C SERIES尺寸图

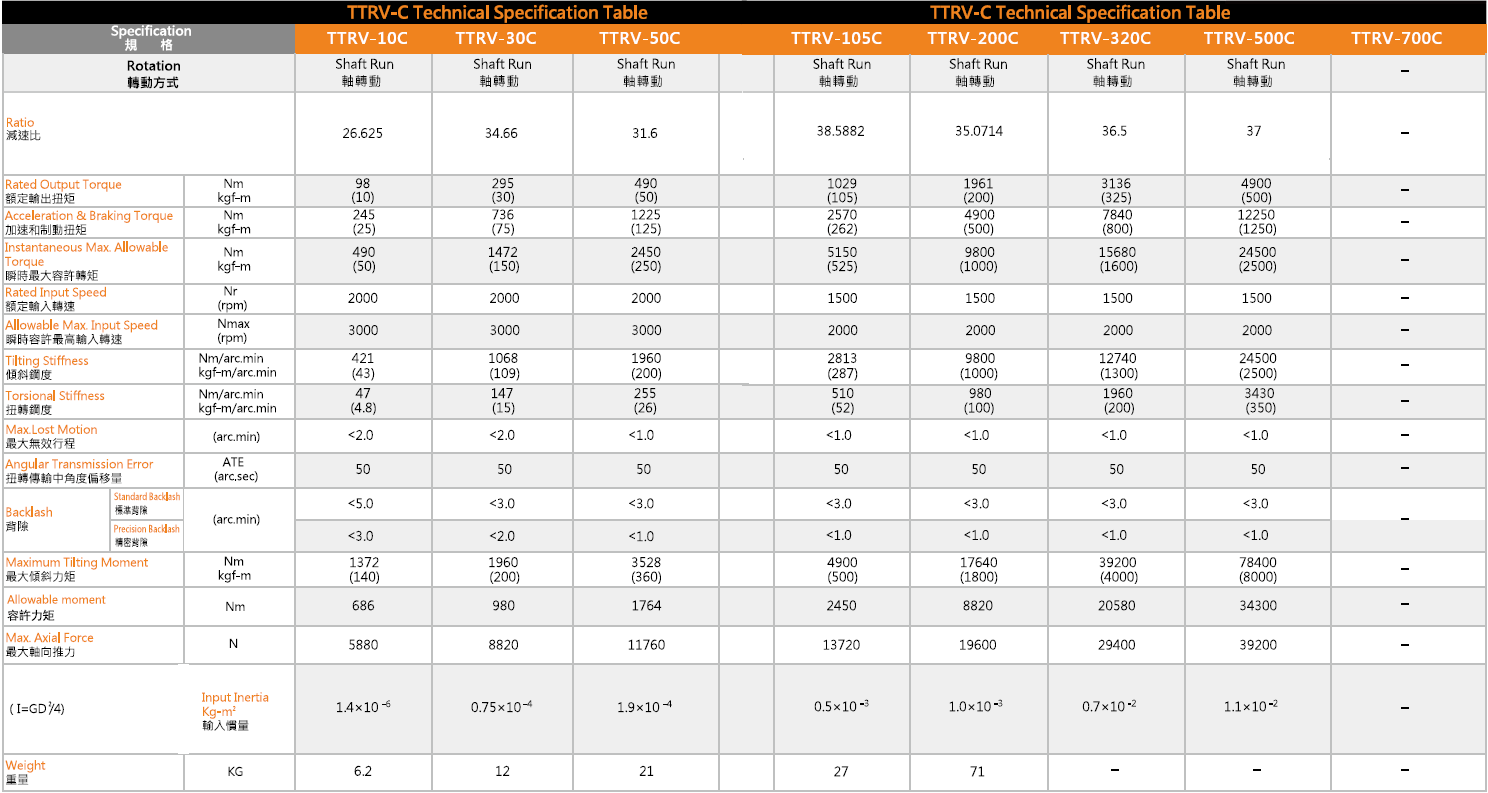

TTRV-C SERIESTechnical Specification
TTRV-C SERIES性能表
Robotic arm-TTRV
